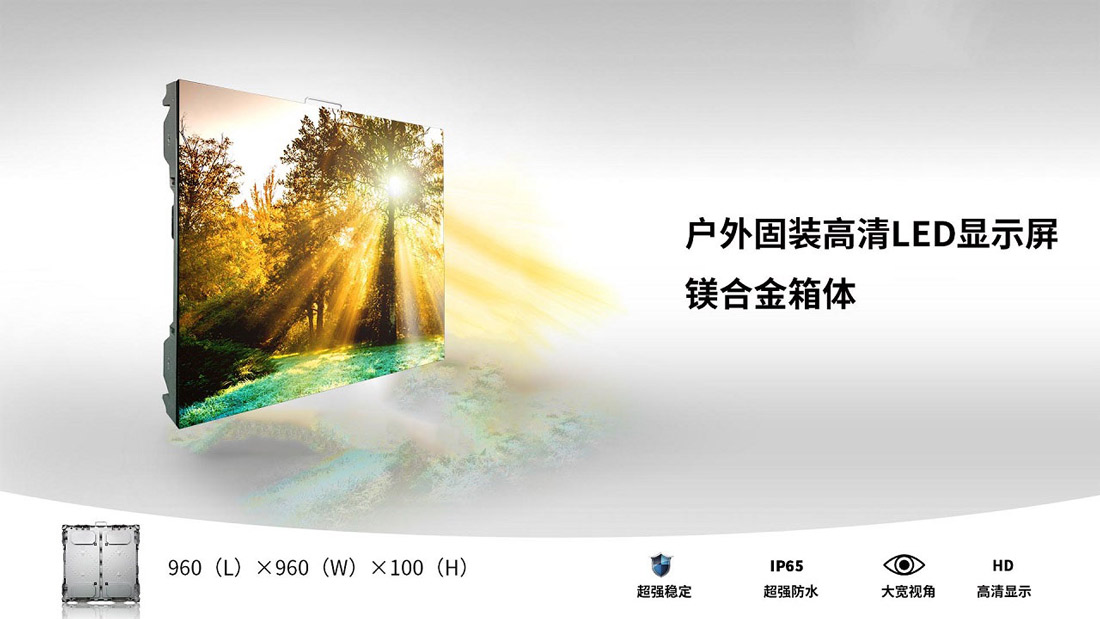

P2.5/P3/P4/P5/P6/P8/P10

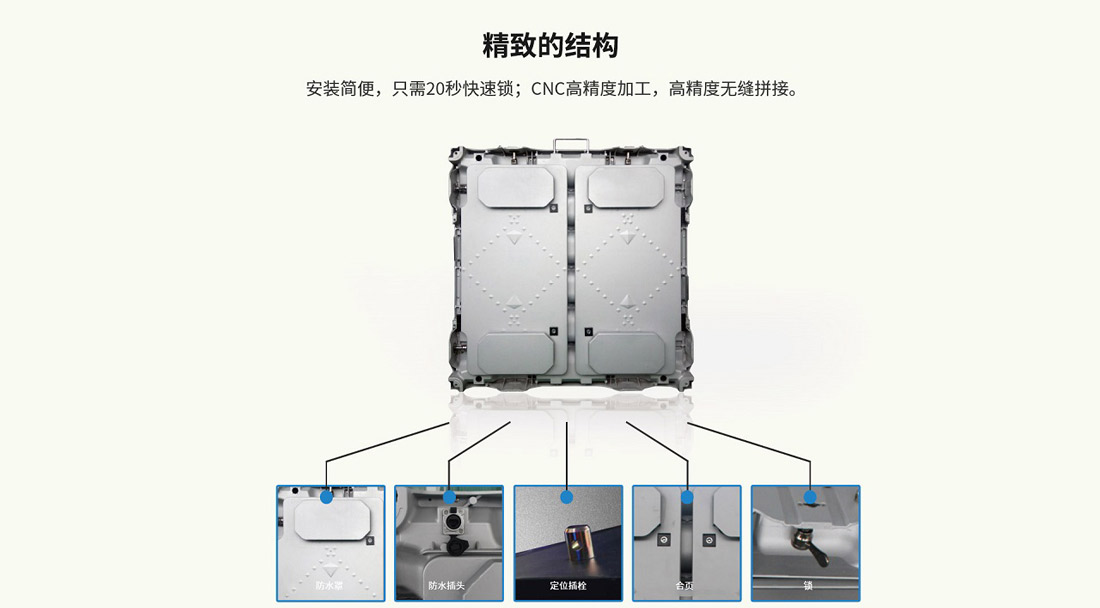

安装快捷一专用快速锁,安装仅需20秒;

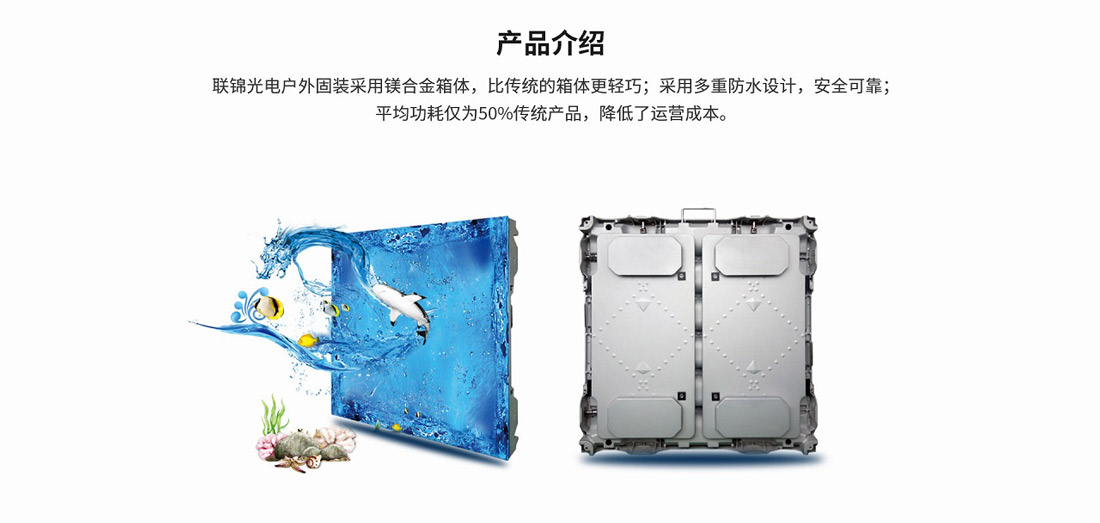

镁合金材质,箱体更轻更博;
色彩均匀、对比度高、画面靓丽自然;
宽视角优化设计,覆盖核心主流受众;
抗紫外线、抗变形模组套件,保障屏体平整不变形;
箱体多重防水式设计,单箱全检出厂,防护等级达IP65;
点间距 | P2.5 | P3 | P4 | P5 | P6 | P8 | P10 |
灯珠类型 | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
像素密度(点/m²) | 160000 | 111111 | 62500 | 40000 | 27777 | 15625 | 10000 |
模组分辨率 | 128X64 | 64X64 | 80X40 | 64X32 | 32X32 | 40X20 | 32X16 |
模组尺寸(宽X高) | 320X160 | 192X192 | 320X160 | 320X160 | 192X192 | 320X160 | 320X160 |

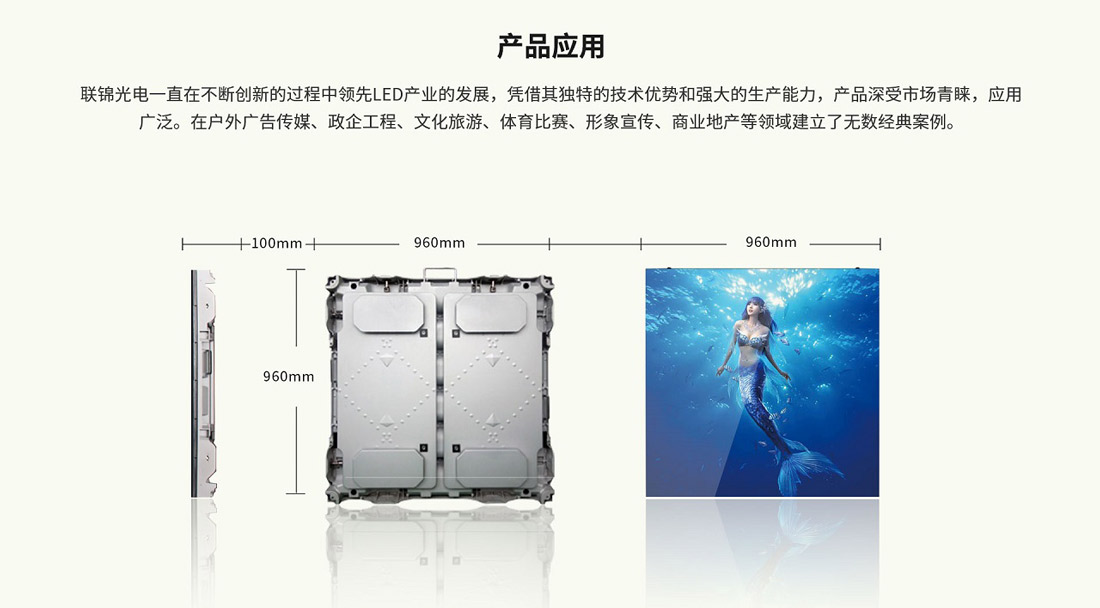

箱体尺寸(mm) | 960X960 | 960X960 | 960X960 | 960X960 | 960X960 | 960X960 | 960X960 |
箱体分辨率 | 384X384 | 320X320 | 240X240 | 192X192 | 160X160 | 120X120 | 96X96 |
箱体模组组成(宽X高) | 3X6 | 5X5 | 3X6 | 3X6 | 5X5 | 3X6 | 3X6 |
箱体重量(kg) | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
维护方式 | 后维护 | 后维护 | 后维护 | 后维护 | 后维护 | 后维护 | 后维护 |
箱体材质 | 镁合金 | 镁合金 | 镁合金 | 镁合金 | 镁合金 | 镁合金 | 镁合金 |
亮度(Nits) | 5000 | 5000 | 5000 | 5000 | 5000 | 5500 | 6500 |
色温(K) | 1000-18500可调 | 1000-18500可调 | 1000-18500可调 | 1000-18500可调 | 1000-18500可调 | 1000-18500可调 | 1000-18500可调 |
视角(水平/垂直) | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
最佳可视距离 | 2.5-150m | 3-150m | 4-200m | 5-250m | 6-300m | 8-300m | 9-300m |
灰度等级 | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
亮度/色度均匀性 | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% |
对比度 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
换帧频率 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
驱动方式 | 恒流驱动,1/32扫 | 恒流驱动,1/16扫 | 恒流驱动,1/8扫 | 恒流驱动,1/8扫 | 恒流驱动,1/8扫 | 恒流驱动,1/4扫 | 恒流驱动,1/2扫 |
刷新率 | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
峰值功耗(W/m²) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
平均功耗(W/ m²) | 200-300 | 200-300 | 200-300 | 200-300 | 200-300 | 200-300 | 200-300 |
输入电压 | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz |
工作温/湿度范围(°C/RH) | -20~60°C/10%-85% | -20~60°C/10%-85% | -20~60°C/10%-85% | -20~60°C/10%-85% | -20~60°C/10%-85% | -20~60°C/10%-85% | -20~60°C/10%-85% |
储存温/湿度范围(°C/RH) | -20~60°C/10%-85% | -20~60°C/10%-85% | -20~60°C/10%-85% | -20~60°C/10%-85% | -20~60°C/10%-85% | -20~60°C/10%-85% | -20~60°C/10%-85% |
适用标准 | CCC/CE/RoHS/FCC/BIS/CB/TUV/IEC |
