GN-A058B 280W Spot & Beam Moving Head
GN-A058B
Current position: Home >> Product >> Unavailable Light >> GN-A058B 280W Spot & Beam Moving Head

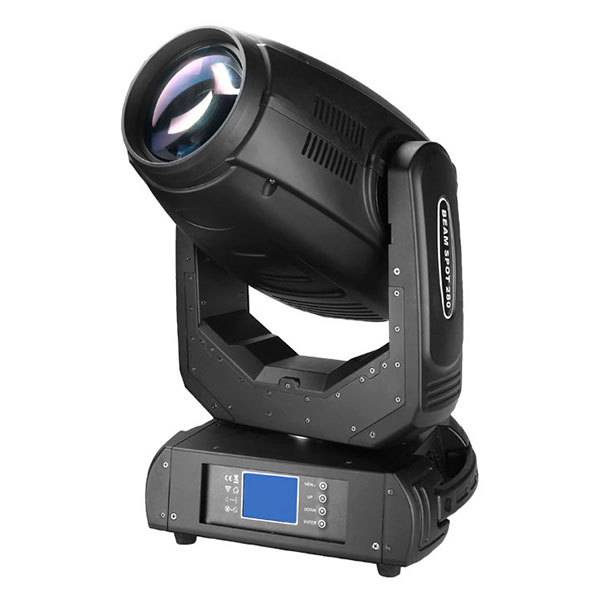

GN-A058B 280W Spot & Beam Moving Head
GN-A058B

Voltage:110V~240V/50-60Hz

Ballast:Electronic Ballast

Lamp:OSRAM HRI 280W OR YODN

Average Lifespan:2200Hrs

Power consumption:400W

Lens:High precision optical lens

Color wheel:13 dichroic filters + white

Rotating Gobo Wheel, with 9 bidirectional and indexable gobos

Static Gobo wheel with 14 fixed gobos, at variable rotation

Prism 1:8-facet circular prism rotating

                in both directions at different speeds

Prism 2:6-facet linear prism rotating

                in both directions at different speeds

Zoom:Parallel beam angel 2.5°-20° change

Wash effect:Adjustable Wash effects angle

Focus:Linear adjustment

Dimmer:0-100% linear adjustment

Strobe:Double lens strobe (0.5-9 times/ second)

Pan/Tilt:X axis 540° Y axis 270°automatically accurate positioning

Fixation option:Pan/Tilt-lock mechanism

Control mode:Standard DMX512, Auto and Master/ slave mode

Channel:16 CHs / 24 CHs

Controller can open the lamp and reset, including delaying function

Weight :15.8kG

Dimension:450x430x570mm

  • Product introduction
  • Parameter
  • Download

Voltage:110V~240V/50-60Hz

Ballast:Electronic Ballast

Lamp:OSRAM HRI 280W OR YODN

Average Lifespan:2200Hrs

Power consumption:400W

Lens:High precision optical lens

Color wheel:13 dichroic filters + white

Rotating Gobo Wheel, with 9 bidirectional and indexable gobos

Static Gobo wheel with 14 fixed gobos, at variable rotation

Prism 1:8-facet circular prism rotating

                in both directions at different speeds

Prism 2:6-facet linear prism rotating

                in both directions at different speeds

Zoom:Parallel beam angel 2.5°-20° change

Wash effect:Adjustable Wash effects angle

Focus:Linear adjustment

Dimmer:0-100% linear adjustment

Strobe:Double lens strobe (0.5-9 times/ second)

Pan/Tilt:X axis 540° Y axis 270°automatically accurate positioning

Fixation option:Pan/Tilt-lock mechanism

Control mode:Standard DMX512, Auto and Master/ slave mode

Channel:16 CHs / 24 CHs

Controller can open the lamp and reset, including delaying function

Weight :15.8kG

Dimension:450x430x570mm

Voltage:110V~240V/50-60Hz

Ballast:Electronic Ballast

Lamp:OSRAM HRI 280W OR YODN

Average Lifespan:2200Hrs

Power consumption:400W

Channel:16 CHs / 24 CHs

Weight :15.8kG

Dimension:450x430x570mm
