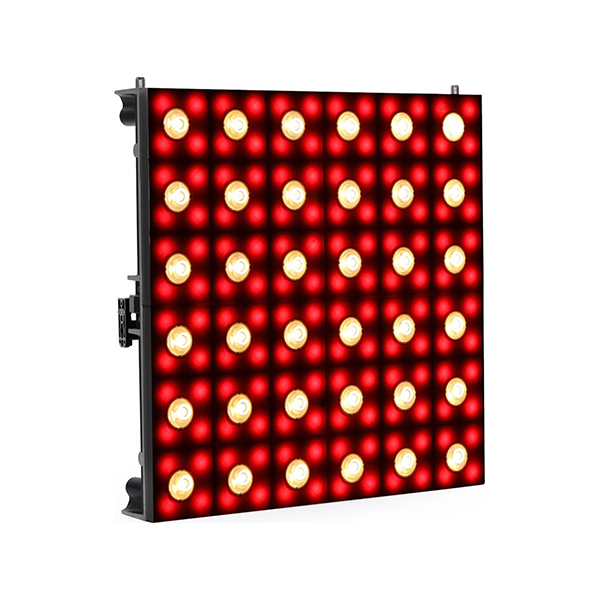

GN-P245 LED Colorful Matrix 36*3W
GN-P245
Current position: Home >> Product >> LED Matrix Light >> GN-P245 LED Colorful Matrix 36*3W
GN-P245 LED Colorful Matrix 36*3W
GN-P245

LEDs: 36pcs 3W Cree warm white

          288pcs 5050 RGB 3in1

Beam angle: 4 degree

Product Size: 500x500x87mm

Carton Size: 55x55x12cm

Flightcase Size: 78x65x60cm (4in1)

Gross Weight: 8.5 KG

 Net Weight: 7.8 KG

AC power: 90V-240V,60/60Hz

Max power consumption: 210W

Power connection: Powercon in/Out

DMX connection: 3&5pin DMX in and Out

Ethernet connect RJ45 in/out

Powercon power cord

 RJ45 cable ,- DMX Cable, - Safety ring

Flightcase and other optional

USITT DMX 512/1990

DMX Modes: 36/864/900CH,- Artnet

 Auto Mode, Manual Mode

Preset programs with adjustable speed

Support RDM


  • Product introduction
  • Parameter
  • Download

LEDs: 36pcs 3W Cree warm white

          288pcs 5050 RGB 3in1

Beam angle: 4 degree

Product Size: 500x500x87mm

Carton Size: 55x55x12cm

Flightcase Size: 78x65x60cm (4in1)

Gross Weight: 8.5 KG

 Net Weight: 7.8 KG

AC power: 90V-240V,60/60Hz

Max power consumption: 210W

Power connection: Powercon in/Out

DMX connection: 3&5pin DMX in and Out

Ethernet connect RJ45 in/out

Powercon power cord

 RJ45 cable ,- DMX Cable, - Safety ring

Flightcase and other optional

USITT DMX 512/1990

DMX Modes: 36/864/900CH,- Artnet

 Auto Mode, Manual Mode

Preset programs with adjustable speed

Support RDM


LEDs: 36pcs 3W Cree warm white

          288pcs 5050 RGB 3in1

Beam angle: 4 degree

Product Size: 500x500x87mm

Carton Size: 55x55x12cm

Flightcase Size: 78x65x60cm (4in1)

Gross Weight: 8.5 KG

 Net Weight: 7.8 KG

AC power: 90V-240V,60/60Hz

Max power consumption: 210W

Power connection: Powercon in/Out

DMX connection: 3&5pin DMX in and Out

Ethernet connect RJ45 in/out

Powercon power cord

 RJ45 cable ,- DMX Cable, - Safety ring

Flightcase and other optional

USITT DMX 512/1990

DMX Modes: 36/864/900CH,- Artnet

 Auto Mode, Manual Mode

Preset programs with adjustable speed

Support RDM
