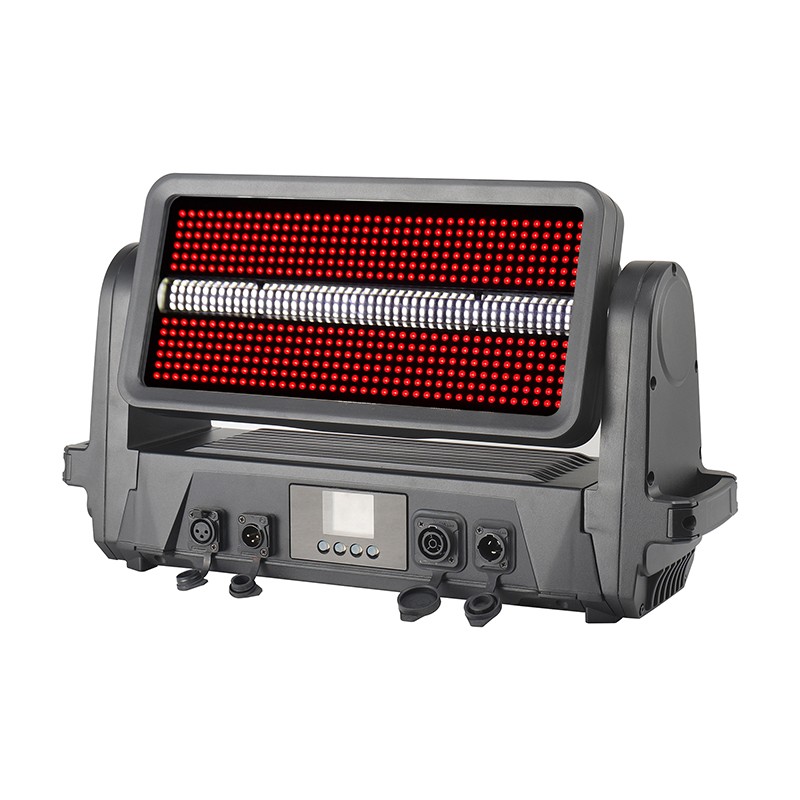

GN-E030 LED Waterproof Moving Strobe
GN-E030
Current position: Home >> Product >> LED Strobe Light >> GN-E030 LED Waterproof Moving Strobe
GN-E030 LED Waterproof Moving Strobe
GN-E030

Input Voltage: 100-240V AC / 50-60Hz          Rated power: 1000W

LED lamp type: 8-segment RGB 3in1 LEDs (color side)

LED lamp type: 4 segment cool white LEDs (white light stroboscopic segment)

Operating resolution: 8-16 bits

Maximum vertical rotation angle: 185°

Control mode: 7/14/42CHs

Display: liquid crystal LCD display

Communication protocol: DMX-512, RDM

RDM: Two-way communication

Cooling system: Two sets of waterproof speed-adjusting fans actively dissipate

heat, and the whole machine is intelligently temperature controlled.

Dimming: 0-100% Linear Electronic Dimming

Strobe: 25 Hz max

Color temperature adjustment: 2.000 K-10.000 K

Internal effect: LED macro effect

Signal connection: Seetronic IP65 3-pin input/output

Power Connection: Seetronic Input/Output

Lamp size: 535*152*300 (mm)

Net weight of lamps: 11kg            Protection class: Ip65


  • Product introduction
  • Parameter
  • Download

Input Voltage: 100-240V AC / 50-60Hz          Rated power: 1000W

LED lamp type: 8-segment RGB 3in1 LEDs (color side)

LED lamp type: 4 segment cool white LEDs (white light stroboscopic segment)

Operating resolution: 8-16 bits

Maximum vertical rotation angle: 185°

Control mode: 7/14/42CHs

Display: liquid crystal LCD display

Communication protocol: DMX-512, RDM

RDM: Two-way communication

Cooling system: Two sets of waterproof speed-adjusting fans actively dissipate

heat, and the whole machine is intelligently temperature controlled.

Dimming: 0-100% Linear Electronic Dimming

Strobe: 25 Hz max

Color temperature adjustment: 2.000 K-10.000 K

Internal effect: LED macro effect

Signal connection: Seetronic IP65 3-pin input/output

Power Connection: Seetronic Input/Output

Lamp size: 535*152*300 (mm)

Net weight of lamps: 11kg            Protection class: Ip65
