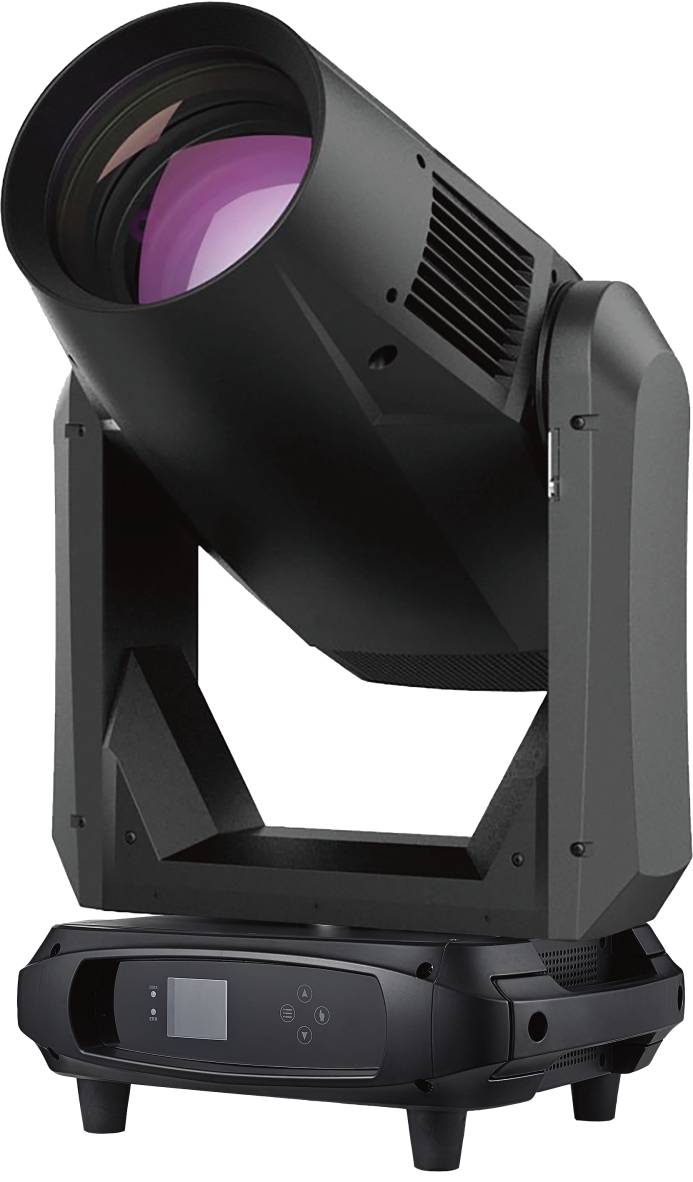

GN-A1200F 1200W LED BSWF Moving Head
GN-A1200F
Current position: Home >> Product >> Framing Moving Head >> GN-A1200F 1200W LED BSWF Moving Head
GN-A1200F 1200W LED BSWF Moving Head
GN-A1200F

Input Voltage:100-240V 50/60 Hz

Light Source:1200W white LED, 8000K

LED lifetime: 20000 hours

CRI: 73-90

Movement:Pan 540°;Tilt 270°

Auto X/Y repositioning, fast, quiet and smooth

Framing: 4 groups and eight directions of blade, multiple design

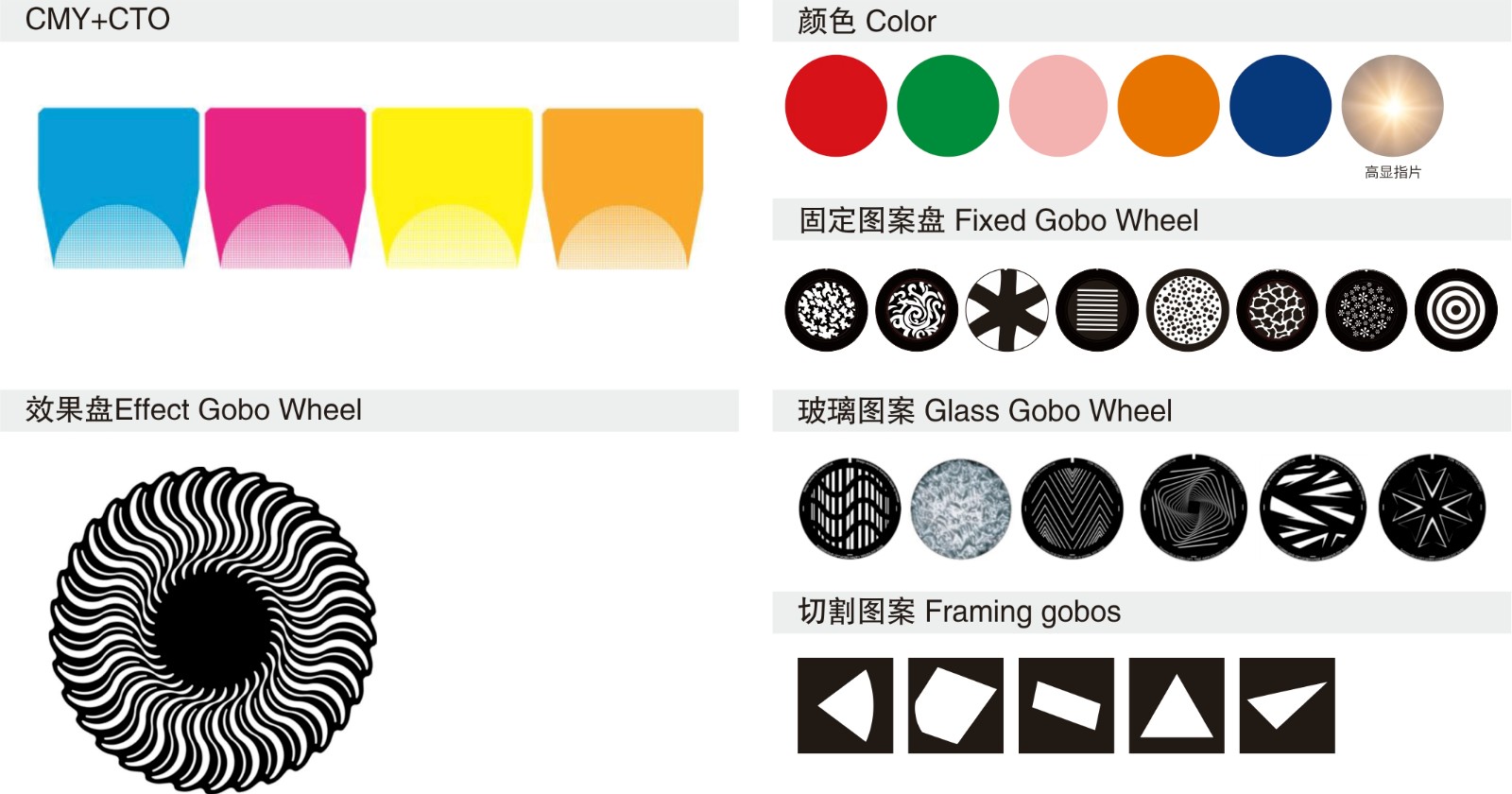

Gobos:one static gobo wheel:  8 gobos + open

One rotating gobo wheel: 6 gobos + open, interchangable, indexable

One animation wheel: dynamic effect like flame or water, etc

Color: one color wheel, 5 colors+ Open;

CTO: Independent CTO,color temperature can be linear adjusted

CMY:  Independent CMY, with linear color change,limitless color mixing

Prism: 4 facet prism,

Focus:  Automatic focus

Zoom: 5°~ 50° linear zoom

Iris:  5%-100% motorized linear iris adjustment

Dimming:0~100% linear dimming

Strobe: 0-20Hz ,With strobe effect, 1-25 times/second

Frost:   35°-65° With frost effect, with 3 frost lever-heavy, medium and light

Display: LCD display

Software: Update software by DMX connection

Control Mode: DMX 512,RDM,Artnet(Optional),Auto-running ,

                              Master/salve, Sound active, Built-in program

Channel: 34/25/29/20CH

Gross weight: 45KG                                        Net Weight:50KG

Packing size:94x56x45.5CM
