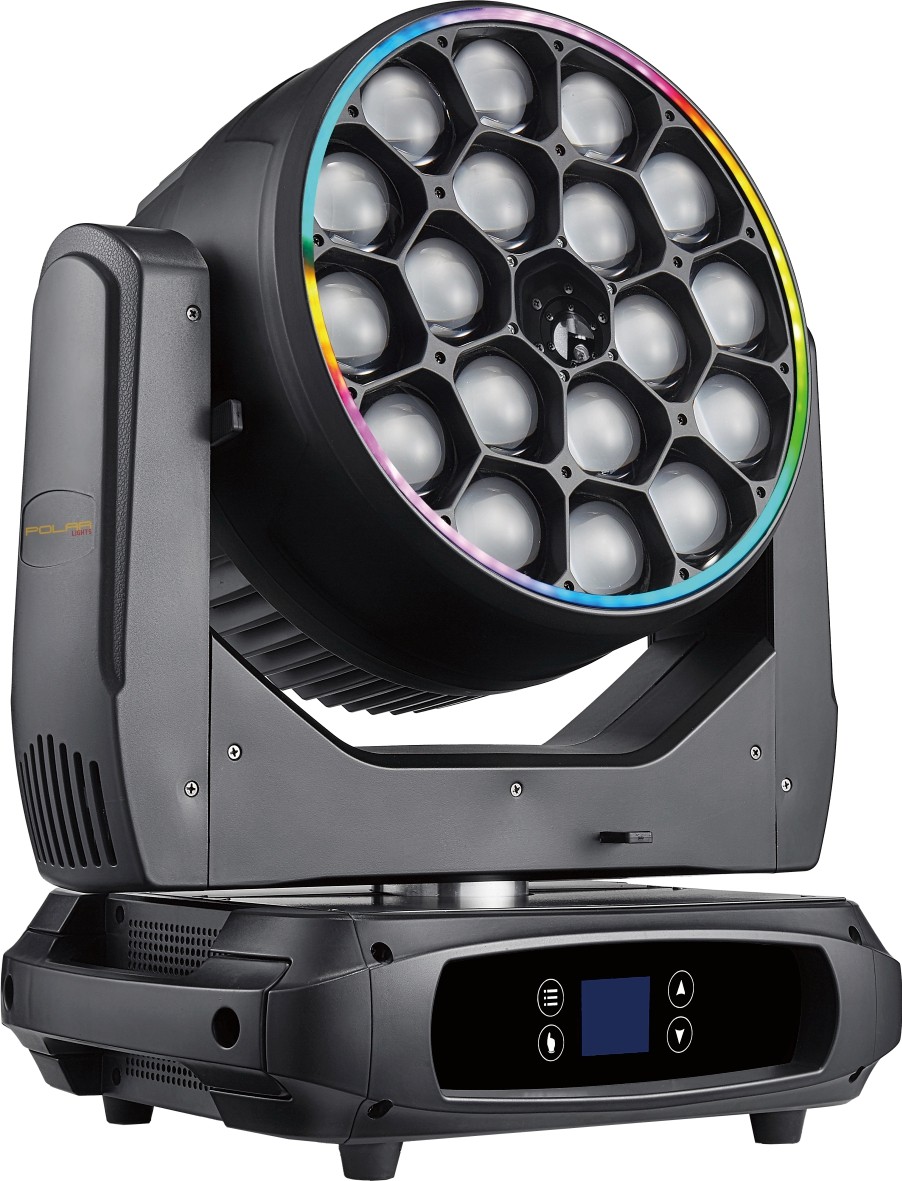

GN-P1840BYL LED 18*40W Big Bee-eye Laser Moving Head
GN-P1840BYL
Current position: Home >> Product >> Wash >> GN-P1840BYL LED 18*40W Big Bee-eye Laser Moving Head
GN-P1840BYL LED 18*40W Big Bee-eye Laser Moving Head
GN-P1840BYL

POWER SUPPLIES:100-240V 50/60Hz

LAMP SOURCE:18×40W RGBW Osram LEDs,50,000 h

LED Strips: 5050RGB 83PCS*0.12W

Laser power: 10W RGB laser

Color temperature:2500 - 8000K

OPTICS:4°-60° Electronic Zoom angle

Three operating modes: wash, beam, FX (Kaleido effects)

Front Lens Bi-directional Rotation

Digital Wash-Beam Framing effect

Beam edge softening control (in Wash mode)

0-100% linear electronic dimmer

Carton laser effect

Adjustable speed stop/strobe effect, with instantaneous blackout

Dedicated channel for color temperature setting

RGBW auto-tuning,CONTROL AND PROGRAMMING

DMX512: 3/5-pin XLR IN-OUT sockets

Power connect: Powercon in&out

Display:LCD display

Travel:PAN = 540°,TILT = 210°

Channel:52/76/148CH

Packing size:645x535x415mm

Net weight: 22KG

Gross weight:26 Kg


  • Product introduction
  • Parameter
  • Download

POWER SUPPLIES:100-240V 50/60Hz

LAMP SOURCE:18×40W RGBW Osram LEDs,50,000 h

LED Strips: 5050RGB 83PCS*0.12W

Laser power: 10W RGB laser

Color temperature:2500 - 8000K

OPTICS:4°-60° Electronic Zoom angle

Three operating modes: wash, beam, FX (Kaleido effects)

Front Lens Bi-directional Rotation

Digital Wash-Beam Framing effect

Beam edge softening control (in Wash mode)

0-100% linear electronic dimmer

Carton laser effect

Adjustable speed stop/strobe effect, with instantaneous blackout

Dedicated channel for color temperature setting

RGBW auto-tuning,CONTROL AND PROGRAMMING

DMX512: 3/5-pin XLR IN-OUT sockets

Power connect: Powercon in&out

Display:LCD display

Travel:PAN = 540°,TILT = 210°

Channel:52/76/148CH

Packing size:645x535x415mm

Net weight: 22KG

Gross weight:26 Kg
