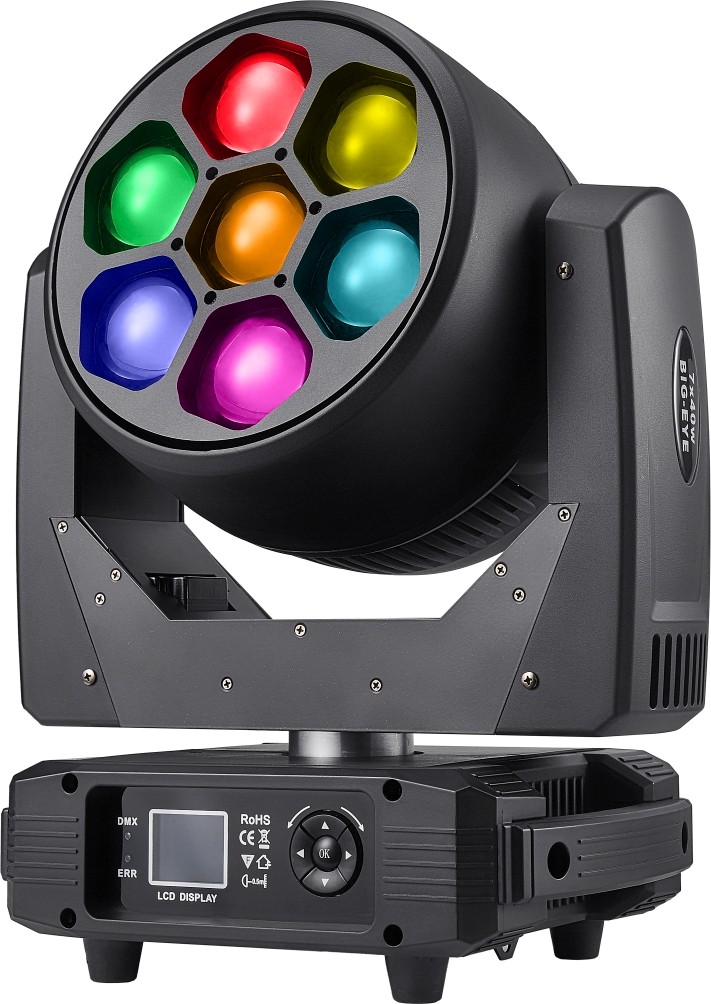

GN-L740BY LED 7*40W Big Bee-eye Moving Head
GN-L740BY
Current position: Home >> Product >> Wash >> GN-L740BY LED 7*40W Big Bee-eye Moving Head
GN-L740BY LED 7*40W Big Bee-eye Moving Head
GN-L740BY

POWER SUPPLIES:100-240V 50/60Hz

LAMP SOURCE:7×40W RGBW Osram LEDs,50,000 h.

Color temperature:2500 - 8000K

OPTICS:10°-30° Electronic Zoom angle

Three operating modes: wash, beam, FX (Kaleido effects)

Front Lens Bi-directional Rotation

Digital Wash-Beam Framing effect

Beam edge softening control (in Wash mode)

0-100% linear electronic dimmer

Adjustable speed stop/strobe effect,

with instantaneous blackout

Dedicated channel for color temperature setting

RGBW auto-tuning,CONTROL AND PROGRAMMING

DMX512: 3/5-pin XLR IN-OUT sockets

Power connect: Powercon in&out

Display:LCD display       Travel:PAN = 540°,TILT = 210°

Channel: 23/35/51CH    Packing size:460x290x370mm

Weight:15 Kg


  • Product introduction
  • Parameter
  • Download

POWER SUPPLIES:100-240V 50/60Hz

LAMP SOURCE:7×40W RGBW Osram LEDs,50,000 h.

Color temperature:2500 - 8000K

OPTICS:10°-30° Electronic Zoom angle

Three operating modes: wash, beam, FX (Kaleido effects)

Front Lens Bi-directional Rotation

Digital Wash-Beam Framing effect

Beam edge softening control (in Wash mode)

0-100% linear electronic dimmer

Adjustable speed stop/strobe effect,

with instantaneous blackout

Dedicated channel for color temperature setting

RGBW auto-tuning,CONTROL AND PROGRAMMING

DMX512: 3/5-pin XLR IN-OUT sockets

Power connect: Powercon in&out

Display:LCD display       Travel:PAN = 540°,TILT = 210°

Channel: 23/35/51CH    Packing size:460x290x370mm

Weight:15 Kg


POWER SUPPLIES:100-240V 50/60Hz

LAMP SOURCE:7×40W RGBW Osram LEDs,50,000 h.

Color temperature:2500 - 8000K

OPTICS:10°-30° Electronic Zoom angle

Three operating modes: wash, beam, FX (Kaleido effects)

Front Lens Bi-directional Rotation

Digital Wash-Beam Framing effect

Beam edge softening control (in Wash mode)

0-100% linear electronic dimmer

Adjustable speed stop/strobe effect,

with instantaneous blackout

Dedicated channel for color temperature setting

RGBW auto-tuning,CONTROL AND PROGRAMMING

DMX512: 3/5-pin XLR IN-OUT sockets

Power connect: Powercon in&out

Display:LCD display       Travel:PAN = 540°,TILT = 210°

Channel: 23/35/51CH    Packing size:460x290x370mm

Weight:15 Kg
