Pixel Configuration
| SMD1921
|
Pixel pitch
| 4.0
|
Pixel density(dots/m2)
| 62500
|
Module resolution(W×H)
| 64×32
|
Module size (mm)
| 256(W)×128(H)
|
Module weight (kg)
| 0.32
|
Maximum power consumption of the module(W)
| 25
|
Module of cabinet (W×H)
| 4×6
|
Cabinet resolution(W×H)
| 256×192
|

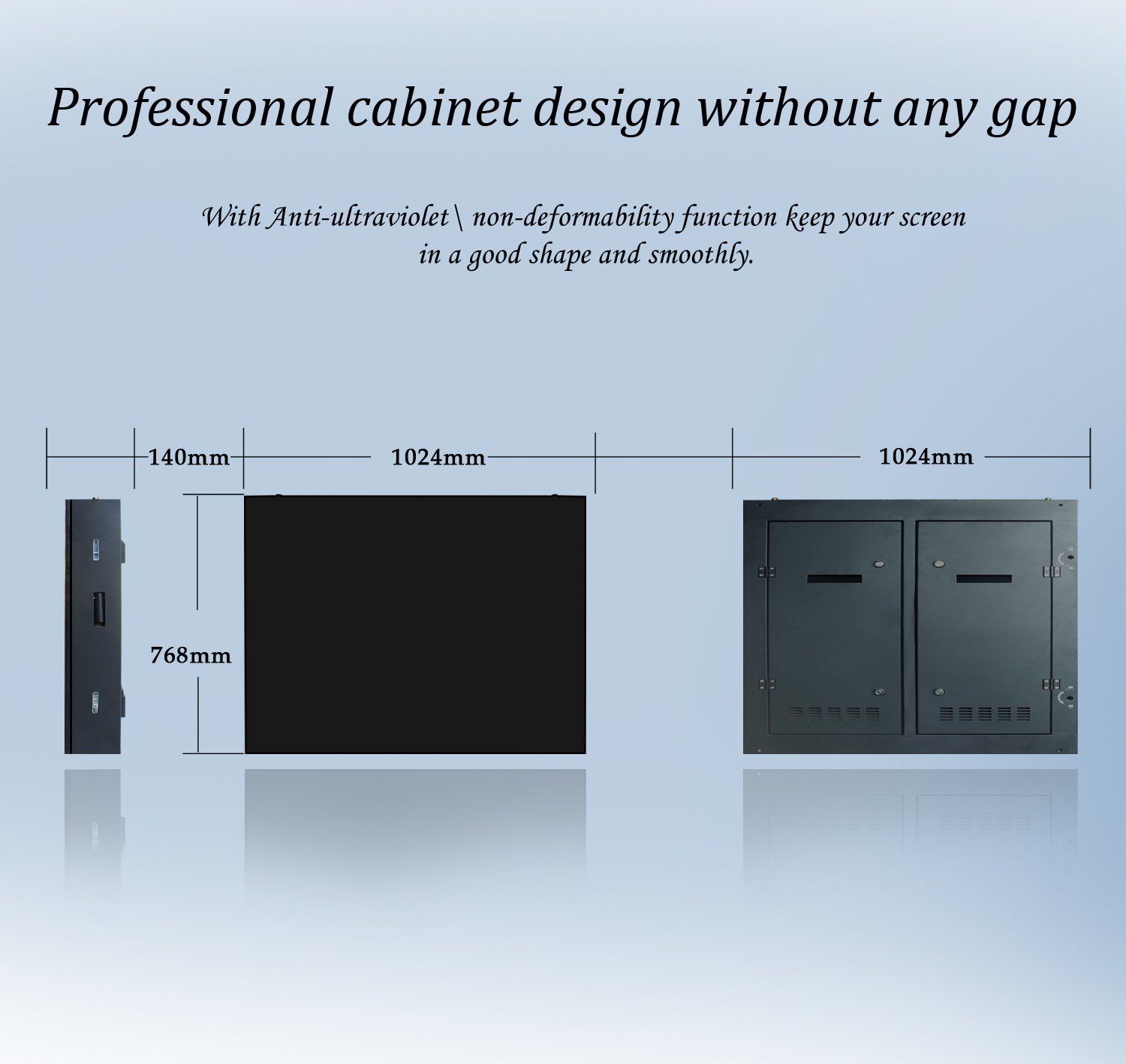

Cabinet size (mm)
| 1024(W)×768(H)×140(D)
|
Cabinet area(m2)
| 0.786
|
Cabinet weight (kg)
| 27.5
|
Cabinet level up degree(mm)
| ≤0.2
|
Maintenance mode
| Back Maintenance
|
Cabinet raw material
| Sheet metal iron box
|
Single-point brightness correction
| Yes
|
Single - point color correction
| Yes
|
White Balance Brightness (nits)
| ≥6000(color temperature 6500K)
|
Color Temperature (K)
| 3200-9300 adjustable
|
Viewing Angle (Horizontal / Vertical)
| 140/120
|
Deviation of center distance of light - emitting
| <3%
|
Brightness / chromaticity uniformity
| ≥97%
|
Contrast
| 4000:1
|
Peak power consumption (W / m2)
| 800
|
Average power consumption (W / m2)
| 250
|
Power supply requirements
| AC90 ~ 264V, frequency frequency 47-63Hz)
|
Frame rate (Hz)
| 50&60
|
Drive mode
| Constant current drive, 1/16scan
|
Grayscale level
| 65536
|
Refresh rate (Hz)
| ≥800
|
Number of color processing bits
| 14bit
|
Video playback capabilities
| 2K HD HD, 4K ultra-high-definition screen HD
|
Operating temperature / humidity range (℃ / RH)
| -20 to 60/10% to 85% RH (no condensation)
|
Storage temperature / humidity range (℃ / RH)
| -20 to 60/10% to 85% RH (no condensation)
|
Applicable standards
| CCC, TUV-CE, ETL, according to test standards
|
