Ultra-light---lighter 40% than aluminum die-csting cabinet
Super slim---high-strength,more slim than aluminum in the design,thiner around 30%
Fast cooling---wxcellent heat dissipation perormance to protet the modular circuit
High strength---support the weight of 300kg through tension test,more strength than aluminum

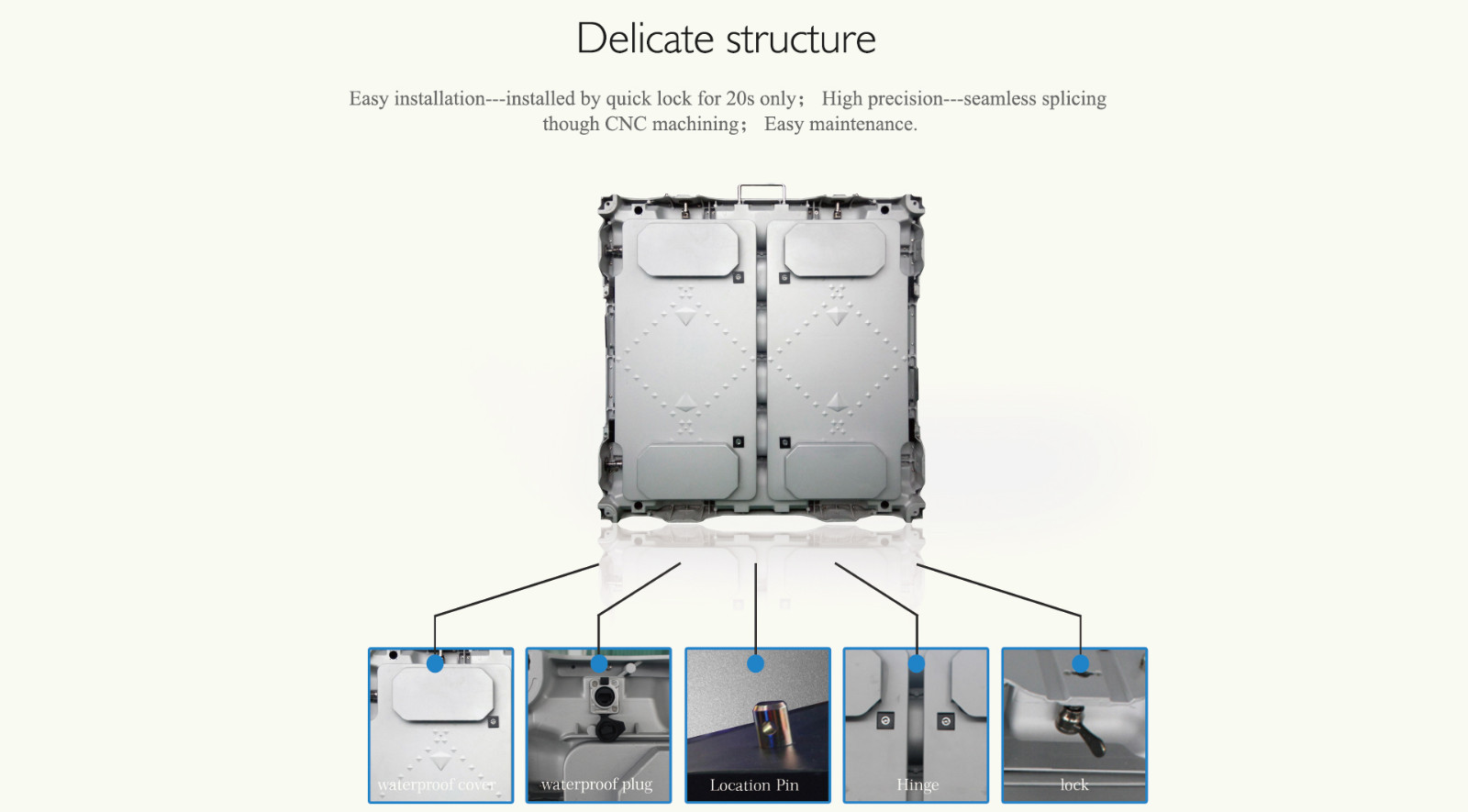

Easy installation---installed by quick lock for 20s only
High precision---seamless splicing though CNC machining
Physical Parameter | Pixel Configuration | SMD3535 |
Pixel Pitch （mm） | 10 | |
Module Dimensions (LxW)/（mm） | 320×160 | |
Pixel matrix per module | 32×216 | |

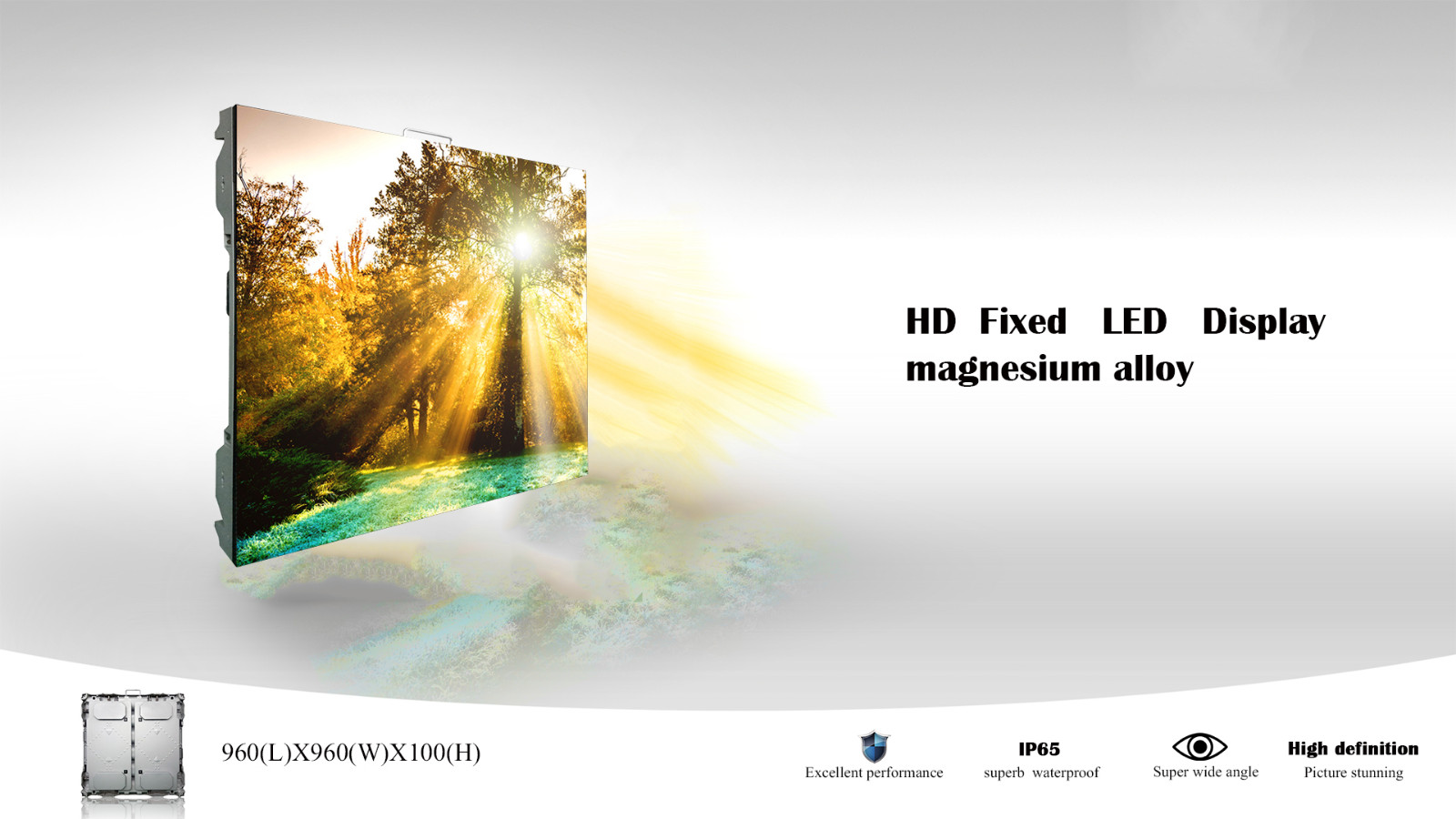

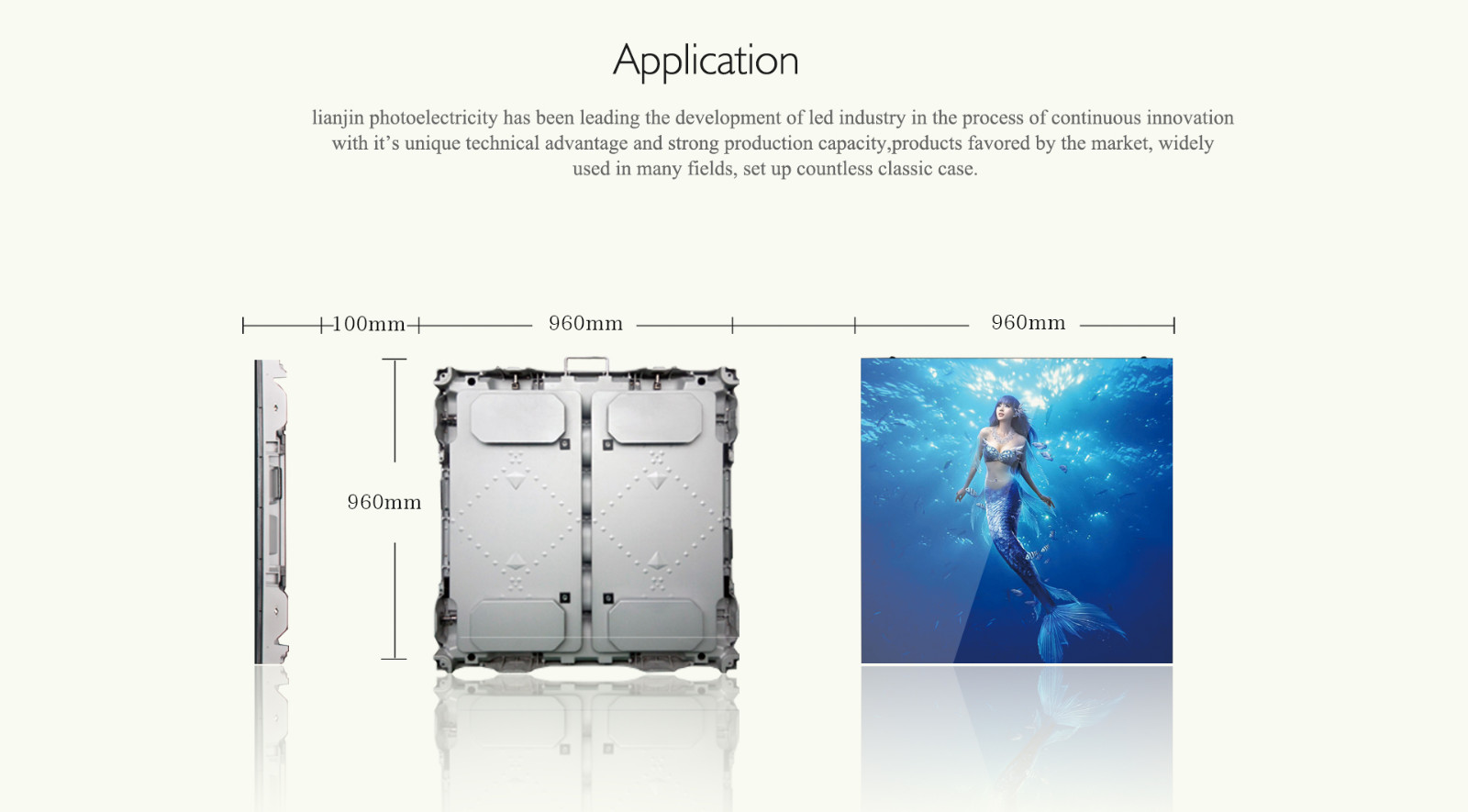

Cabinet Dimensions (LxWxH)/（mm） | 960×960×100 | |
Cabinet material | Iron steel | |
Cabinet weight (kg) | 45 | |
Electronic Parameter | Color Grayscale (Bit) | 16 |
Gray Scale per Color （level) | 65536 | |
Refresh Rate（Hz） | 1920 | |
Driving Type | 1/2 | |
Frame Frequency（Hz） | 50/60 | |
Signal Transmission Distance （m） | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |
Optical Parameter | Brightness（cd/m2） | ＞6000 |
Color Temperature（K） | 6500 | |
Color Contrast | 4000:1 | |
Optimal Horizontal Viewing Angle（°） | 140 | |
Optimal Vertical Viewing Angle（°） | 120 | |
Electrical Parameter | AC Input Voltage（V） | 100~240 |
AC Input Frequency（Hz） | 50/60 | |
AC Input Power Maximum Value（W/m²） | 830 | |
AC Input Power Typical Value（W/m²） | 210 | |
Environment Parameter | Storage Temperature（℃） | ﹣40~﹢60 |
Operating Temperature（℃） | ﹣20~﹢50 | |
Storage Humidity（RH） | 10﹪~90﹪ | |
Operating Humidity（RH） | 10﹪~90﹪ | |
IP rating (Front/Rear) | IP65/IP43 | |
Lifetime Typical Value（hrs） | 100000 | |
Installation type | Cabinet installation type | Fixed |
Maximum number of panel for Lifting | / |
